Tin Solder Product Making Equipment

Standard Multi-die drawing machine

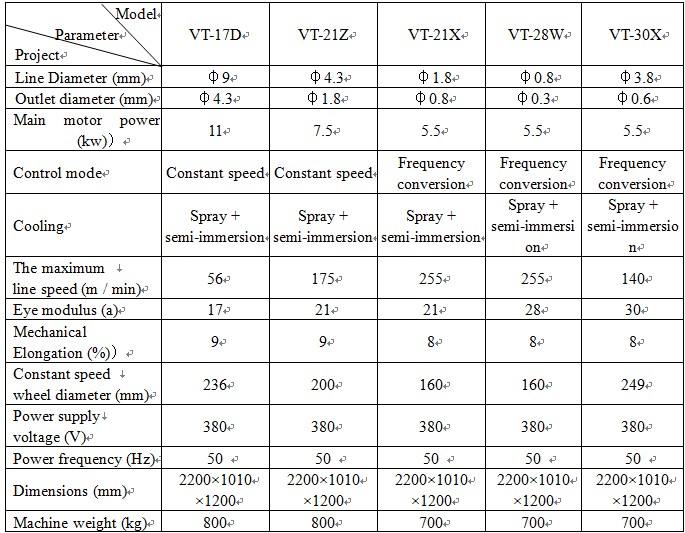

1.Technical parameters:

2.Equipment specification:
This series belongs to conventional tin wire drawing machine wire drawing machine, mainly used for the lead and lead-free solder and tin alloy wire drawing.
This wire-drawing machine model design for horizontal structure, driven by a main motor shaft through the chain transmission in the tower.
Round tin wire pay-off stand into the drawing room, stretching through the cone pulley, wire drawing die. Wire drawing of cooling way is to use spray soaking and half way. And then in turn through the metering after traction wheel, into the receiving coil. Drawing cone pulley adopt single horizontal alignment.
This wire-drawing machine body combined with steel plate steel welding, tower shaft transmission adopts the double chain, cone surface with special treatment to improve the surface hardness and roughness, mold base using insert type design, guarantee the stretch of center distance, reduce break probability, drawing the upper box is equipped with hinged start closed protective cover, in order to prevent the coolant splash. Cooling circulation water tank has electric heating function, to ensure the requirement of drawing technology, a bolt down device into the line.
Three, product characteristics:
This machine is high efficiency, modelling beautiful generous, low noise, simple and convenient operation, safe and reliable.
